A36/Q235/S235JR Carbon Steel Coil
A36/Q235/S235JR Carbon Steel Coil
We cater to individual requirements and strictly adhere to international standards. We are also willing to participate in independent testing. Contact us to receive the lowest price.
Product Details

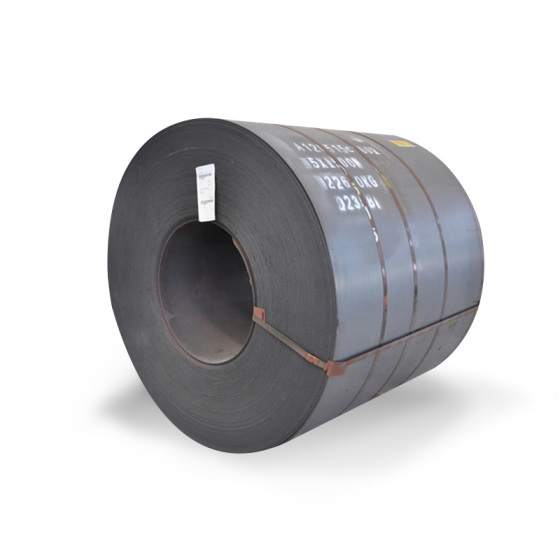

A36/Q235/S235JR Carbon Steel Coil Description
A36 steel coil is mainly composed of iron, carbon, silicon, manganese, phosphorus, sulfur and other elements. Iron is the most dominant component, constituting more than 99% of the entire chemical composition. Its carbon content proportion is relatively high, around 0.2%, ensuring that the steel has a certain hardness and toughness. The addition of silicon, manganese and other elements enhances the strength and toughness of steel. The content of elements such as phosphorus and sulfur is low to ensure that the steel coil has good welding performance and corrosion resistance. A36 steel coil has excellent mechanical properties, and its tensile strength, yield strength, elongation and impact toughness are all higher than ordinary steel.
Product Parameters
| Product Name | A36/Q235/S235JR Carbon Steel Coil |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 45mm-2200mm |
| Length | Custom Size |
| Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| C | Cu | Fe | Mn | P | Si | S |
| 0.25-0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
| A36 | Limit Tensile Strength | Tensile Strength,
Yield Strength |
Elongation at Break
(Unit: 200 mm) |
Elongation at break
(Unit: 50 mm) |
Modulus of Elasticity | Bulk Modulus
(Typical for Steel) |
Poisson’s Ratio | Shear Modulus |
| Metric | 400-550 MPa | 250 MPa | 20.0 % | 23.0 % | 200 GPa | 140 GPa | 0.260 | 79.3 GPa |
| Imperial | 58000-79800 psi | 36300 psi | 20.0 % | 23.0 % | 29000 ksi | 20300 ksi | 0.260 | 11500 ksi |
Physical Performance
| Physical Performance | Metric | Imperial |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
Scope of Application
Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.
Equivalent Material
| National Standard GB | European Standard EN | American Standard ASTM | German Standard DIN, WNr | Japanese Standard JIS | French Standard AFNOR | British Standard BS | Canada HG |
| Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A / 40B | 230G |
| Italy UNI | India IS | Switzerland SS | Australia ONORM | Norway NS | Spain UNE | International Standards ISO | Portugal NP |
| Fe360B | IS2062 | 1311 / 1312 | RSt 360B | NS 12123 | AE235 B-FN | E235B / Fe360B | FE 360-B |
